The front suspension and steering was seriously in need of an upgrade. Global West and Hotchkiss offered the best solutions. Global West CTA-88L lower control arms, with Del-a-lum bushings, were installed, along with Global West S-16 springs, Koni shocks, and Global West CTA-88A upper control arms. The steering knuckles were replaced with new ones from Dorman as well as new backing plates. The steering components were replaced with Hotchkiss.
1 / 5
2 / 5

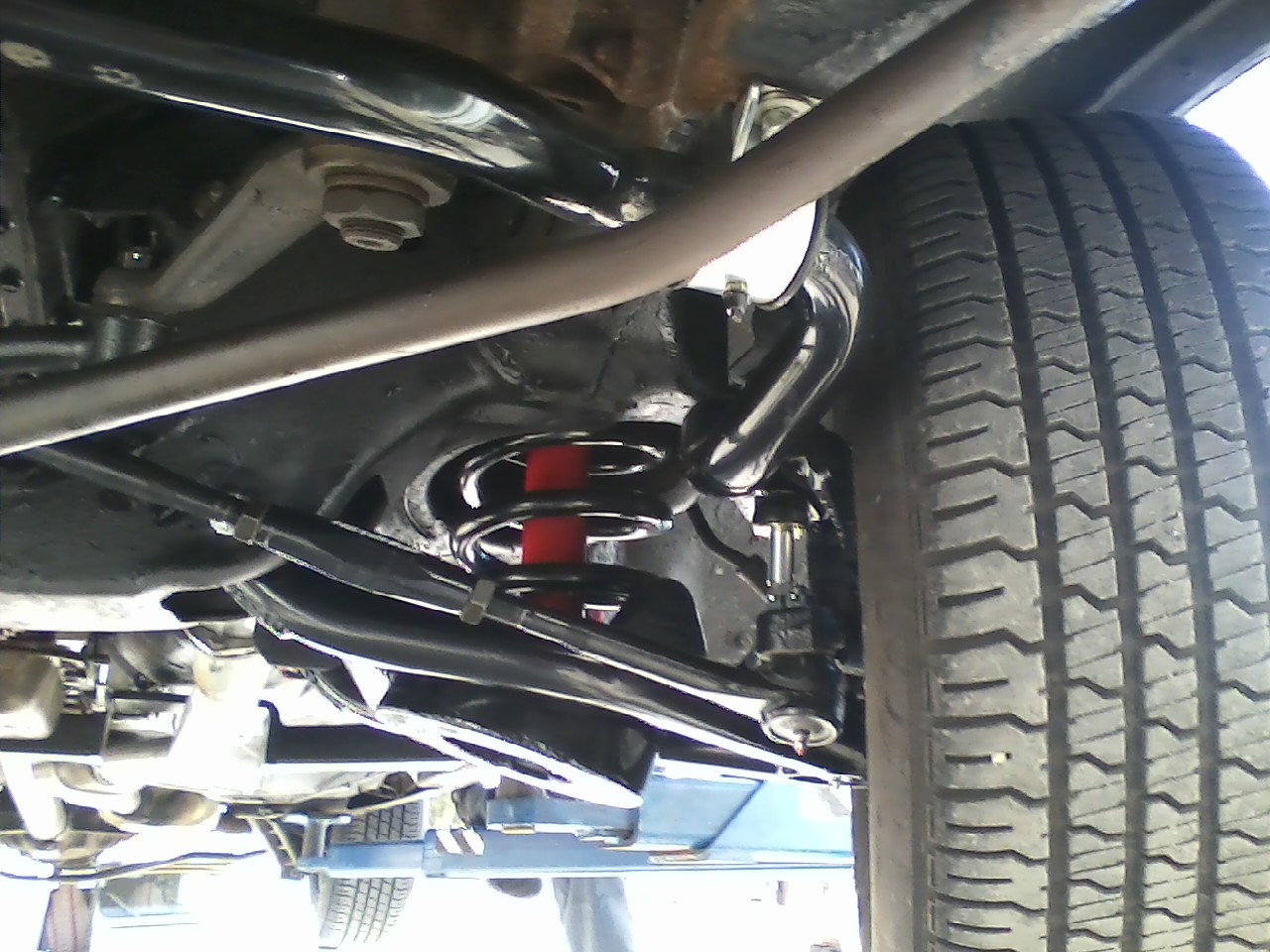

This view shows the Global West springs, and lower control arm. Notice the Hotchkiss anti-sway bar, along with new Hotchkiss steering parts. (There is a Hotchkiss anti-sway bar in the rear as well.)
3 / 5
A good view of the Global West upper control arm, after initial alignment.
4 / 5

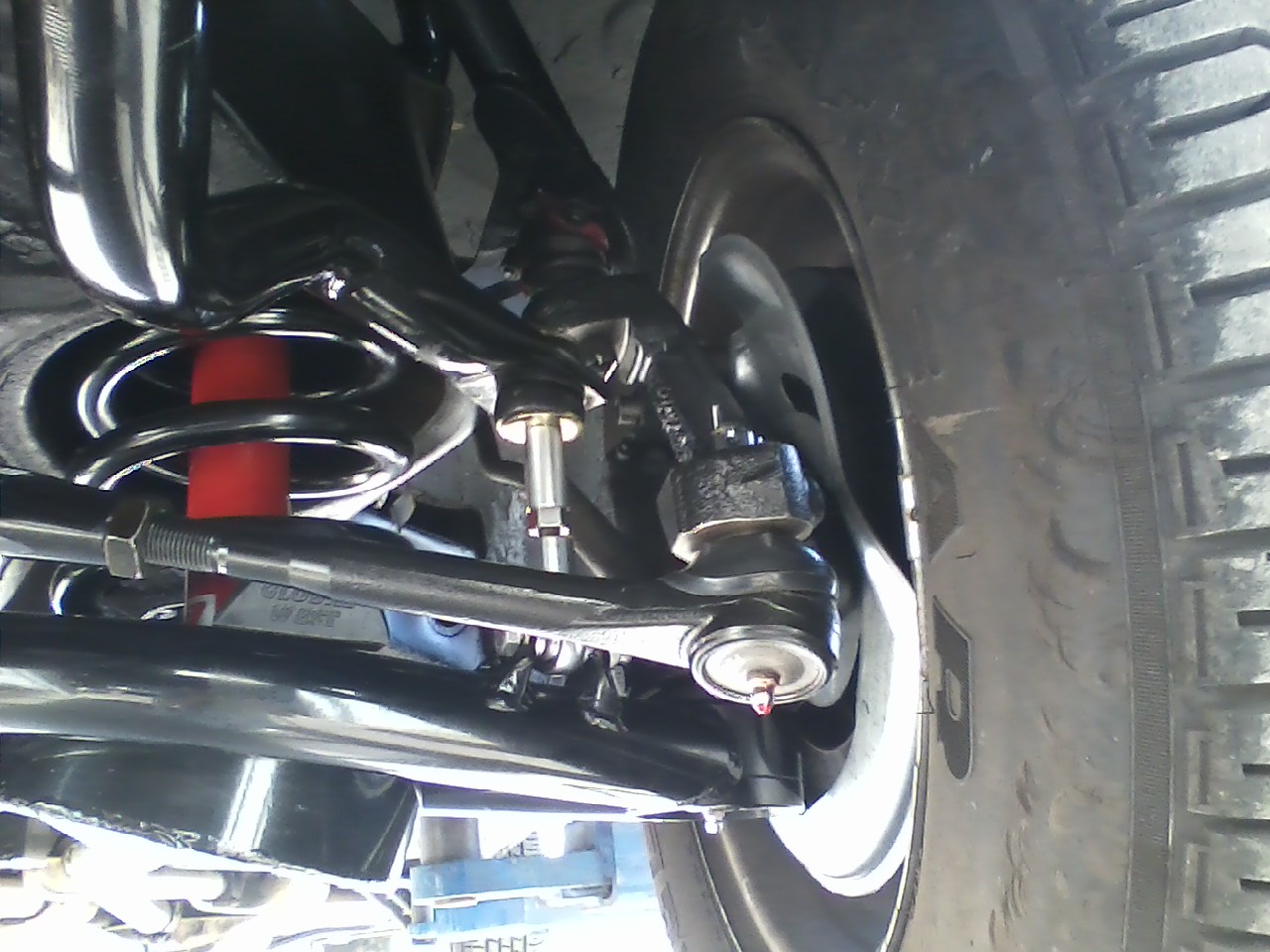

Another view of the Global West springs, Koni shock, and Hotchkiss steering upgrade on the driver side.
5 / 5

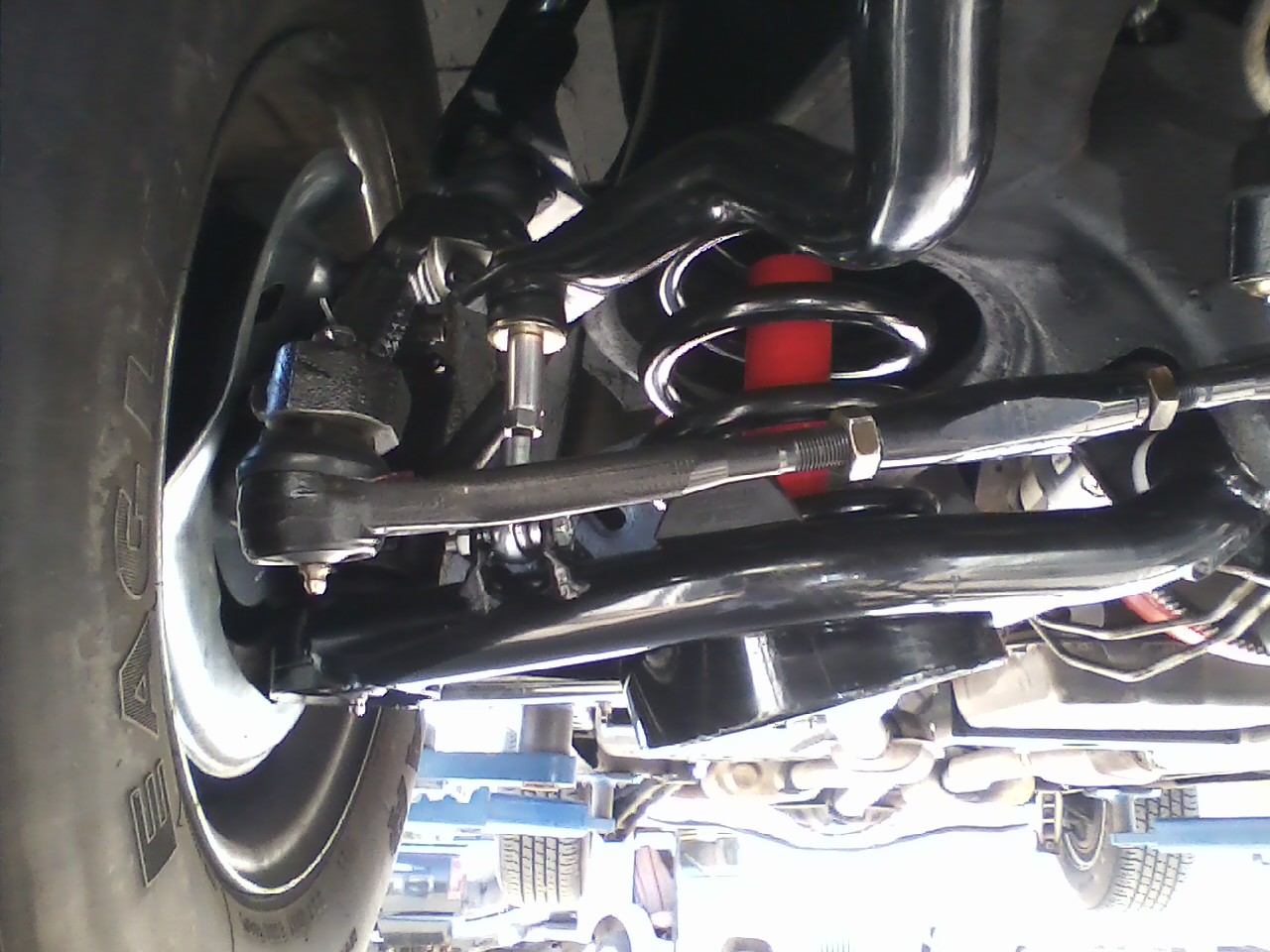

A view of the passenger side suspension.
